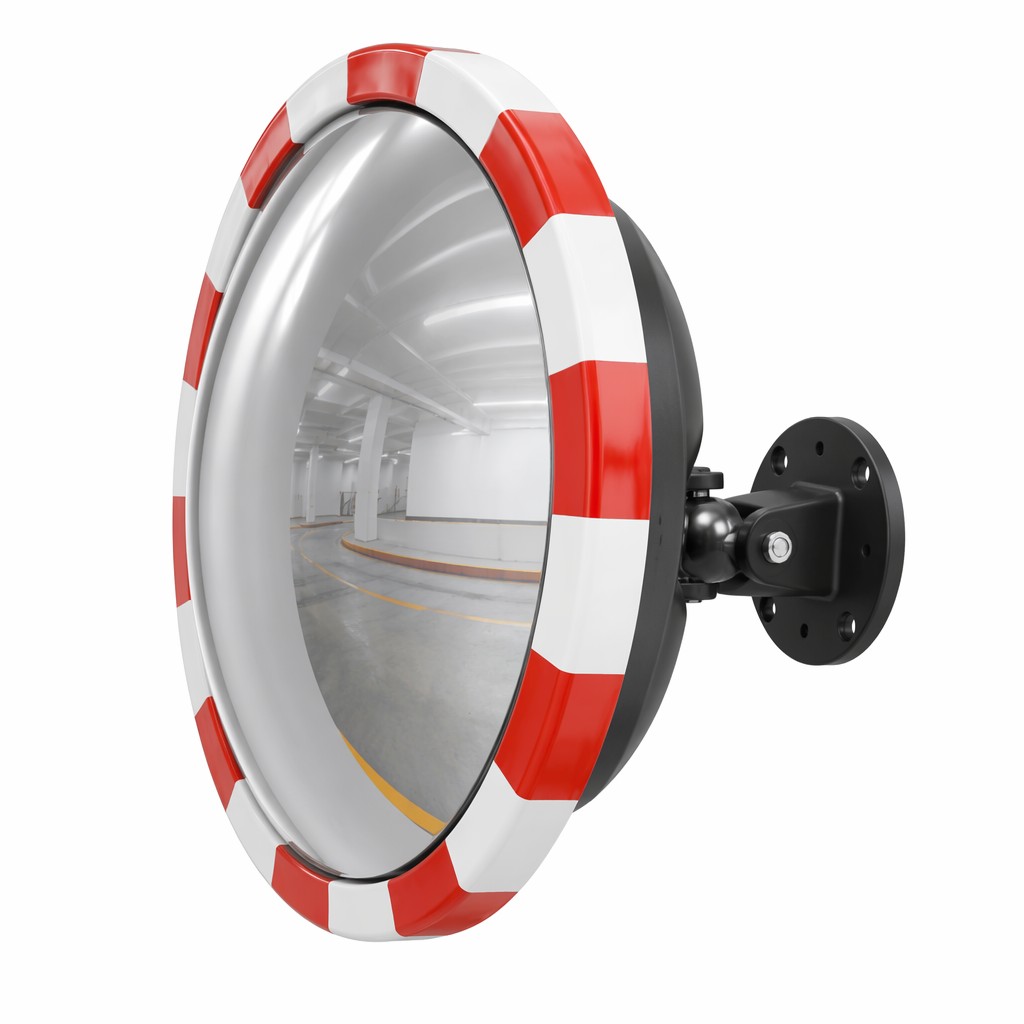

PC Convex Safety Mirror (Parking Lot)

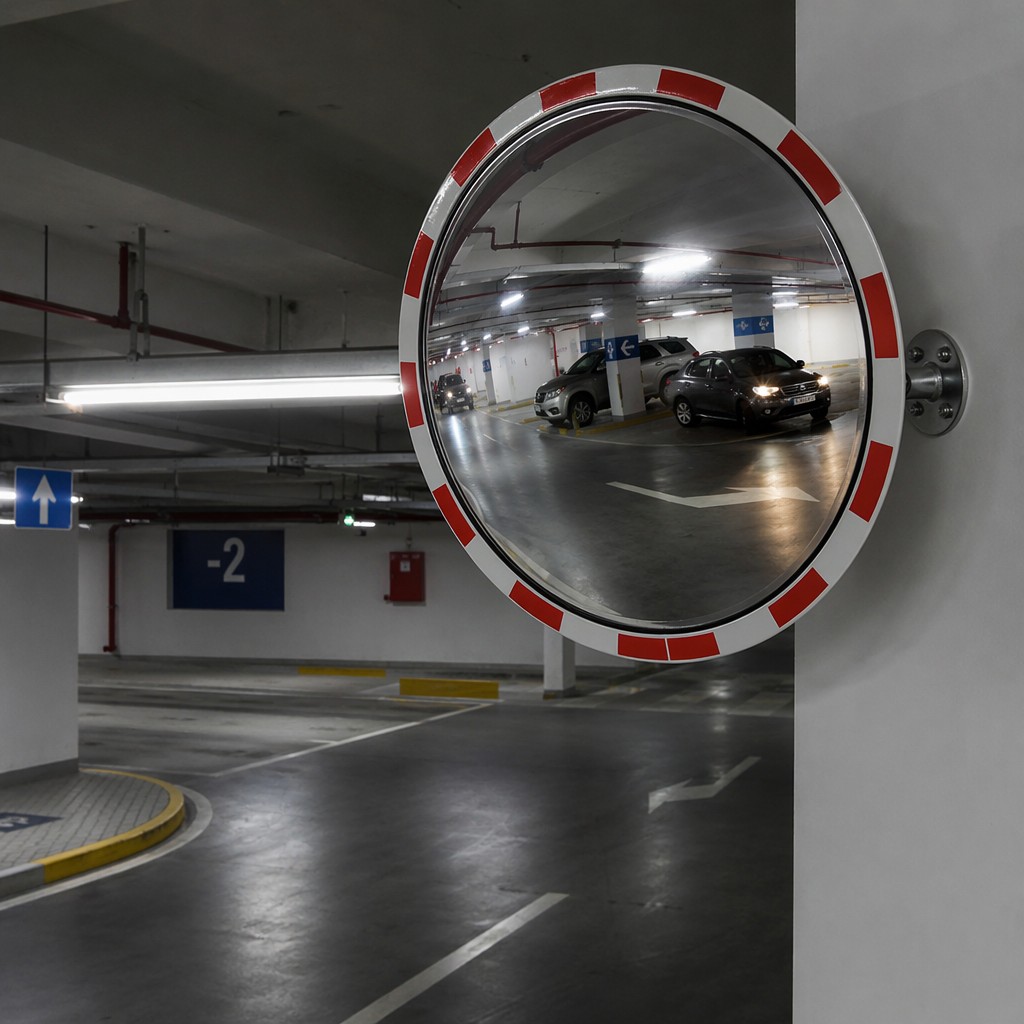

80 cm diameter polycarbonate convex safety mirror with red-and-white protective bezel. Shatterproof PC lens, universal ball-joint mount bracket, indoor/outdoor use. The standard for parking garage blind spots, warehouse aisles, factory T-intersections and industrial safety.

20 pcsMOQ

22 DaysLead Time

PC + SteelMaterial

Shatterproof PC lens — replaces fragile glass mirrors
80 cm diameter — covers 5-metre observation distance

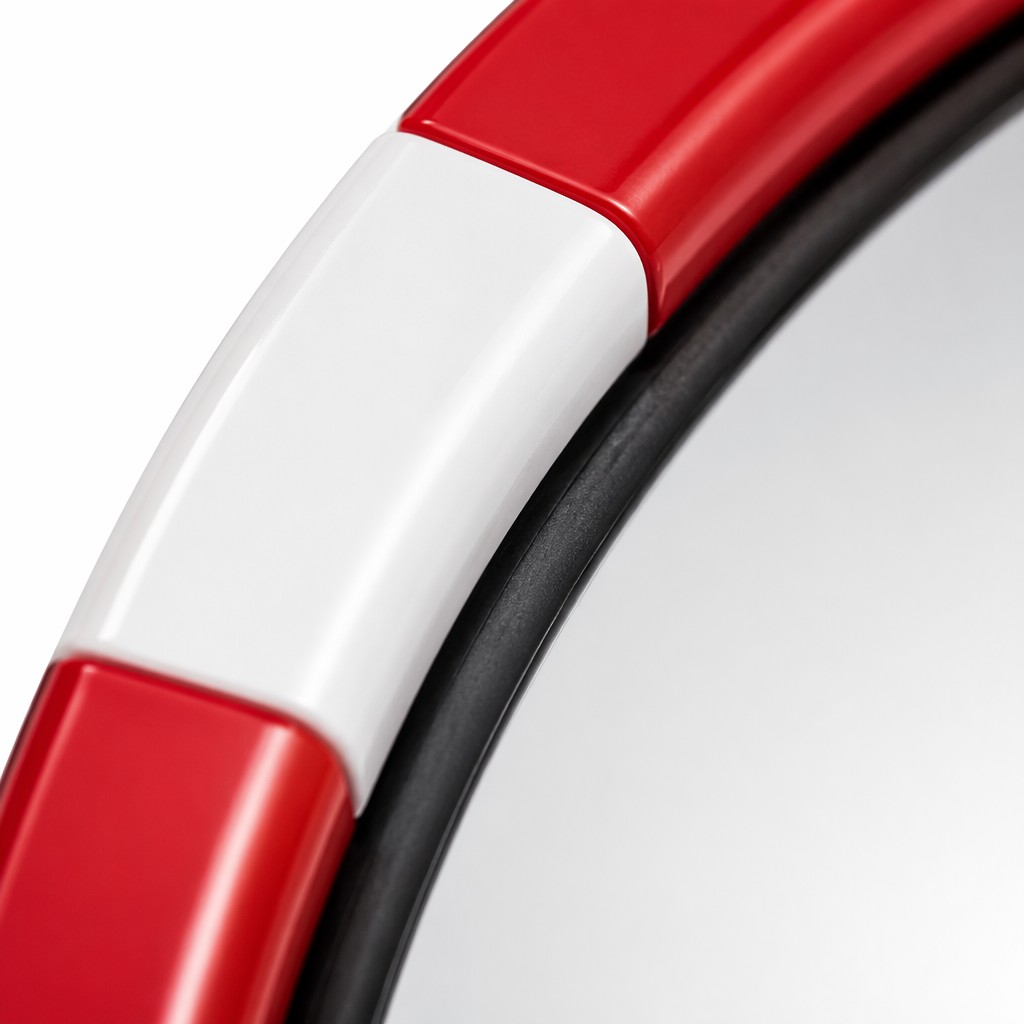

Red-and-white striped bezel for high visibility

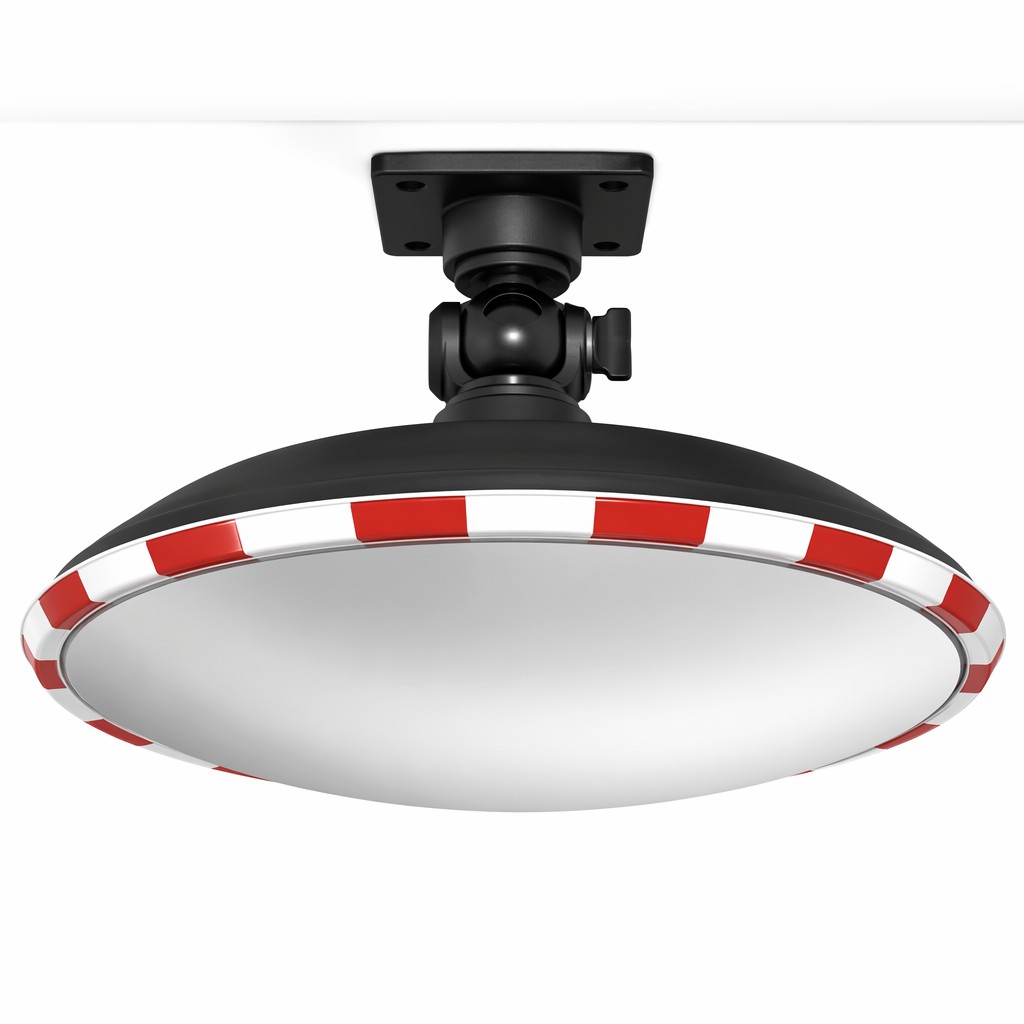

Universal ball-joint mount — wall / post / ceiling
IP54-rated — indoor and outdoor parking garage use

💬 Quote via WhatsApp 📋 Send RFQ 📧 Email Us

Trade Assurance · CE Certified · ISO 9001 · Ships EXW / FOB Ningbo · Response within 2 business hours

Full Technical Specification

Model Code	SM-PC80
Mirror Diameter	800 mm
Convex Depth	120 mm
Observation Distance	Up to 5 metres effective coverage
Frame Material	Red-and-white striped PC bezel
Mirror Material	Shatterproof polycarbonate (PC) with mirror-finish coating
Mount Bracket	Universal ball-joint with 2-axis adjustment
Protection Rating	IP54 · indoor and outdoor rated
Weight	~ 4.5 kg (including bracket)
Weather Hood (optional)	Add-on rain shield for full outdoor exposure

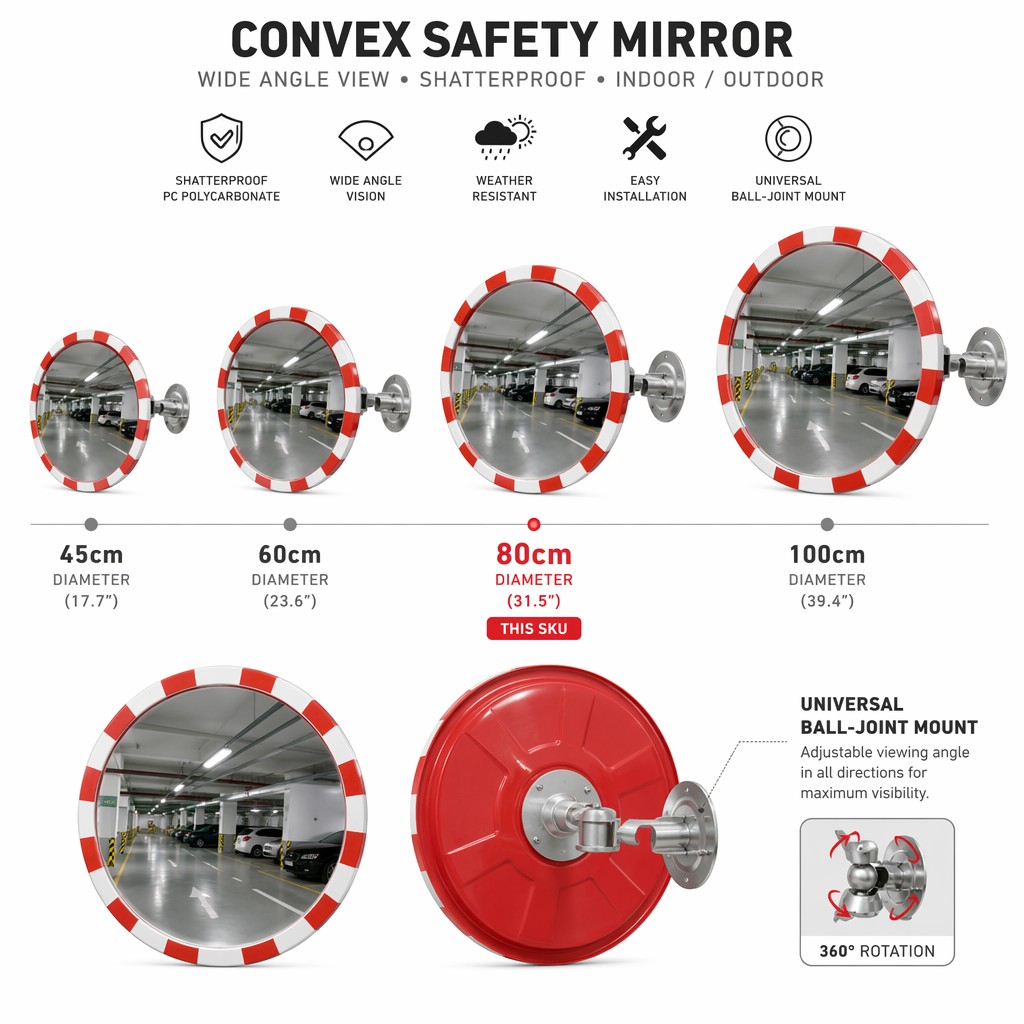

Available Diameters	450 / 600 / 800 (this SKU) / 1000 mm
MOQ	20 pcs
Packing	Individual carton with foam protection
Container Load	~ 200 pcs (800 mm) / 20' GP
Lead Time	22 days for MOQ · 32 days for > 200 pcs

What You Can Customize

Every element below is quotable at MOQ. Send us a spec sheet or a photo — we quote back within 2 hours.

📏 Diameter

450 / 600 / 800 / 1000 mm for different observation distances.

🎨 Bezel Color

Red-and-white striped standard. All-yellow, all-red available.

🌦️ Weather Hood

Optional add-on rain shield for full outdoor exposure.

🔩 Mount Type

Universal ball-joint standard. Wall / post / ceiling / dual-axis options.

🖨️ Custom Print

Silk-screen safety text or company logo on bezel.

📦 Packaging

Individual foam carton, or custom-branded retail box.

Ready to Order This Product?

Send your quantity, target destination and any customization — we reply within 2 business hours with a quote & spec sheet.

→ Send Inquiry Now
