5-Channel Heavy Duty Roadway Cable Protector
Not sure whether you need three or five channels? Read our 3-channel vs 5-channel selection guide.

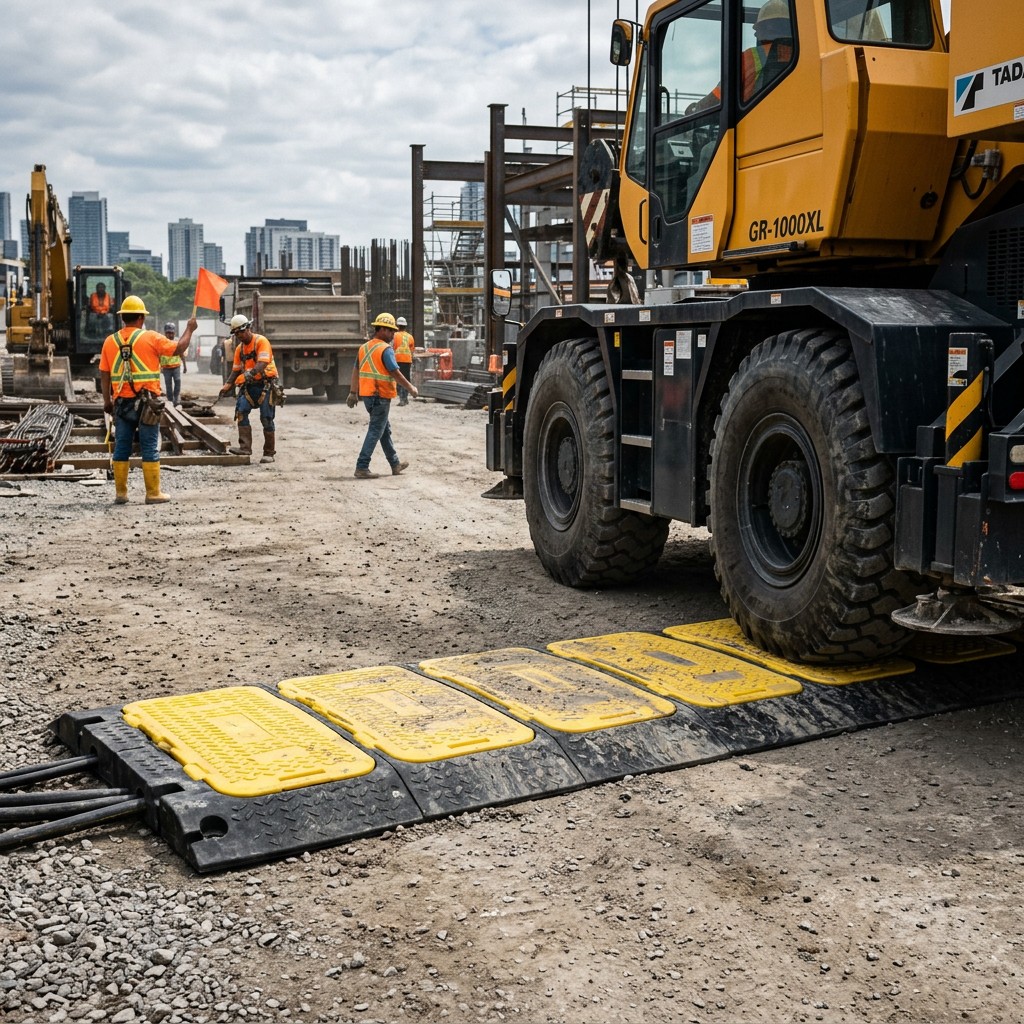

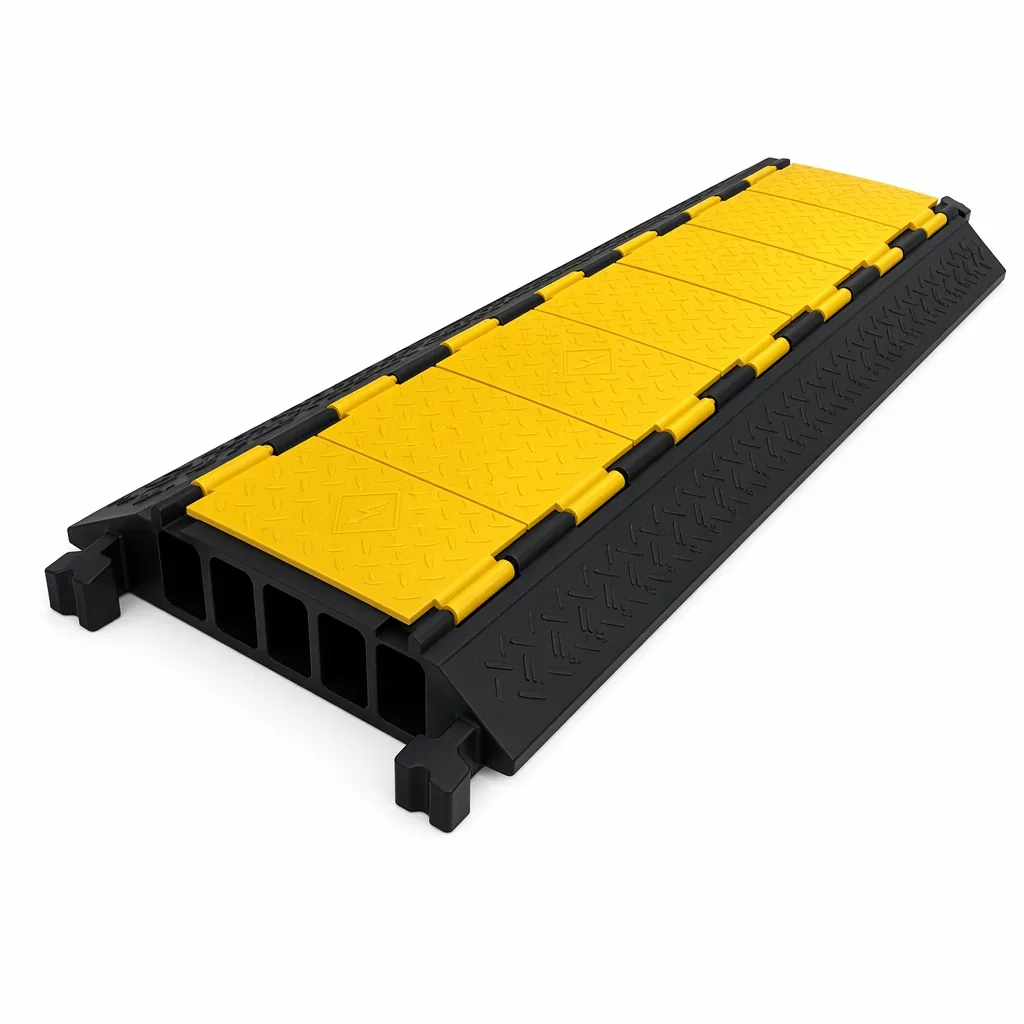

Heavy-duty 5-channel cable protector rated for cranes, forklifts and freight vehicles. Five internal cable channels each up to 42 mm diameter, hinged yellow lids for tool-free access, modular interlocking ends. The standard for construction sites, film shoots and industrial events. Planning a pedestrian crossing? See our ADA cable protector guide.

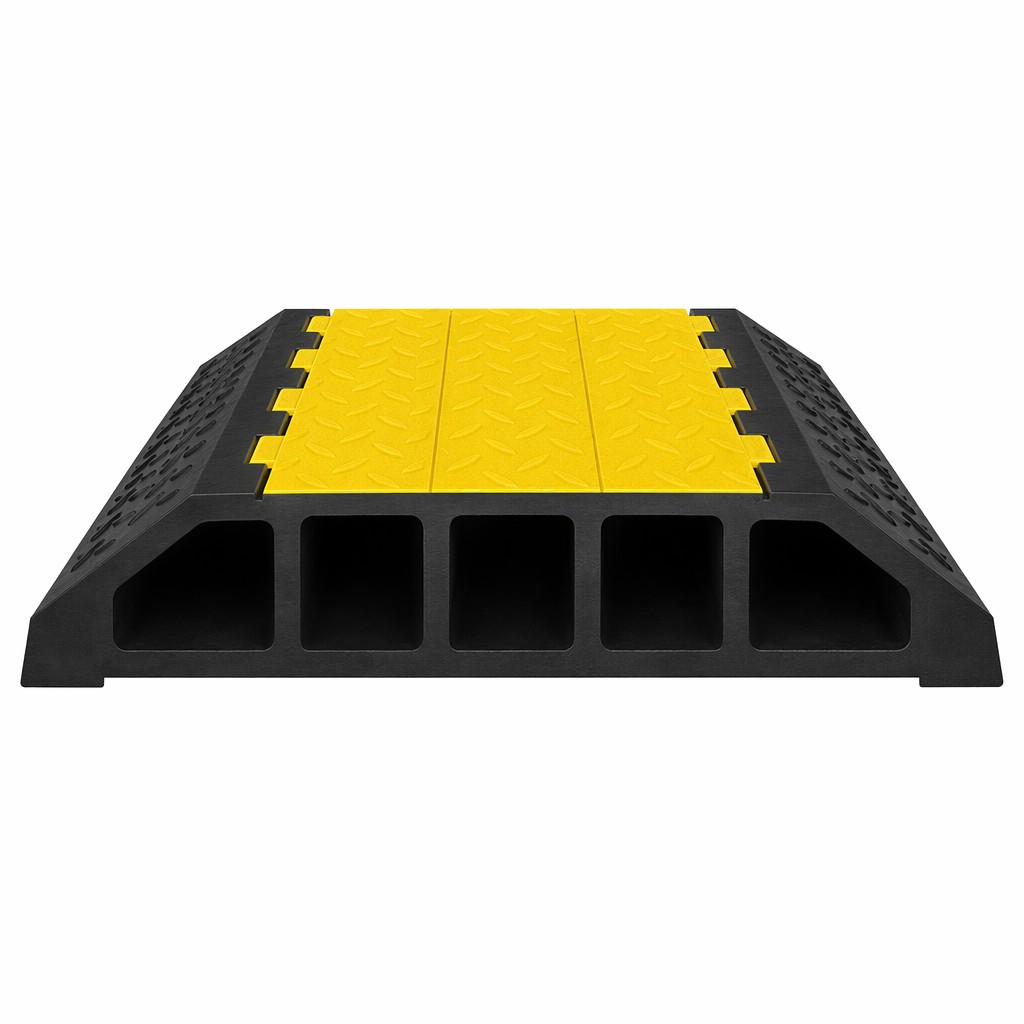

- 5 internal channels — separate power / control / data / audio / spare
- Each channel up to Ø 42 mm — accepts thick industrial cables
- Vehicle-rated — 25-ton static load per unit

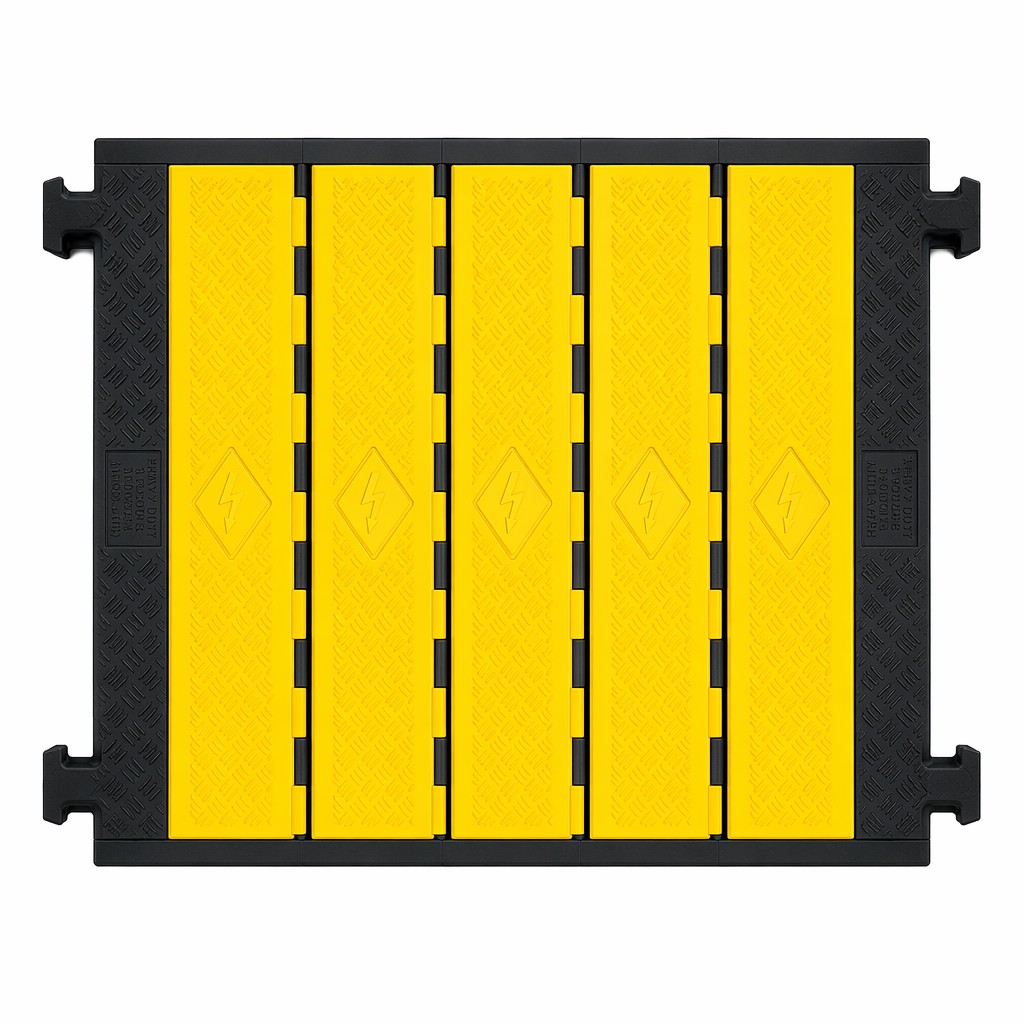

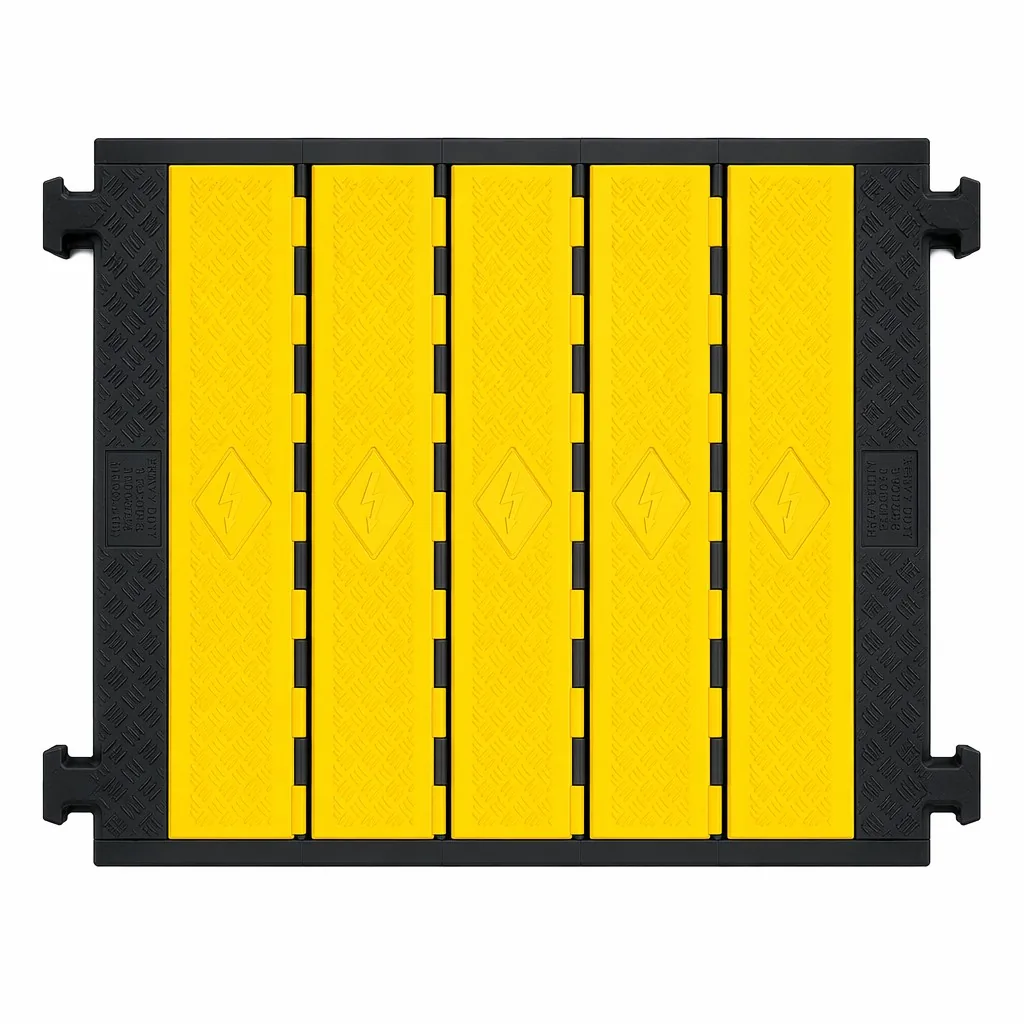

- Hinged yellow lids for tool-free cable access

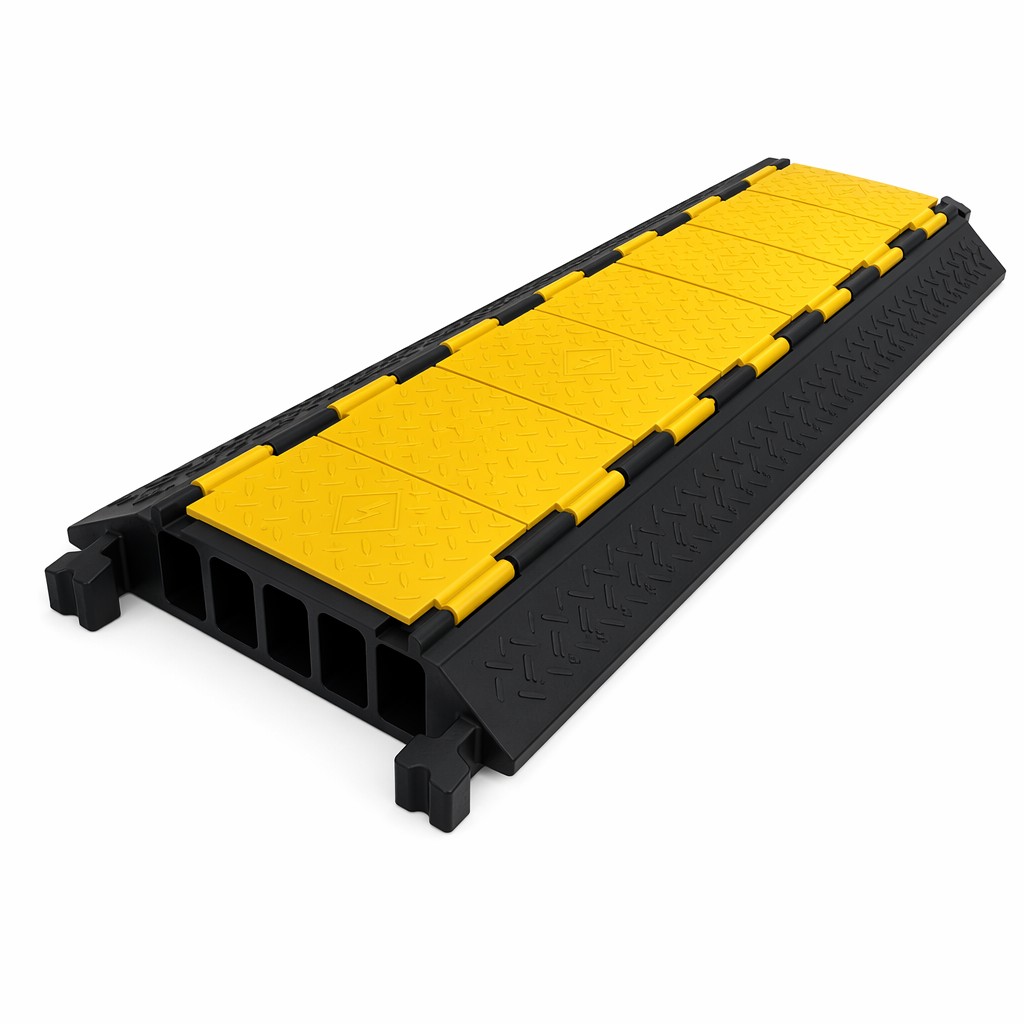

- Modular interlocking — build any length in 900 mm increments
Full Technical Specification
| Model Code | CP-5CH |
|---|---|
| Length × Width | 900 × 660 mm per unit In-house |
| Height | 75 mm In-house |
| Weight | ~ 22 kg per unit In-house |
| Cable Channels | 5 × internal channels, each Ø 42 mm max cable In-house |
| Base Material | Molded SBR rubber, heavy-duty compound In-house |
| Lid Material | High-visibility PVC, safety yellow (RAL 1023) |

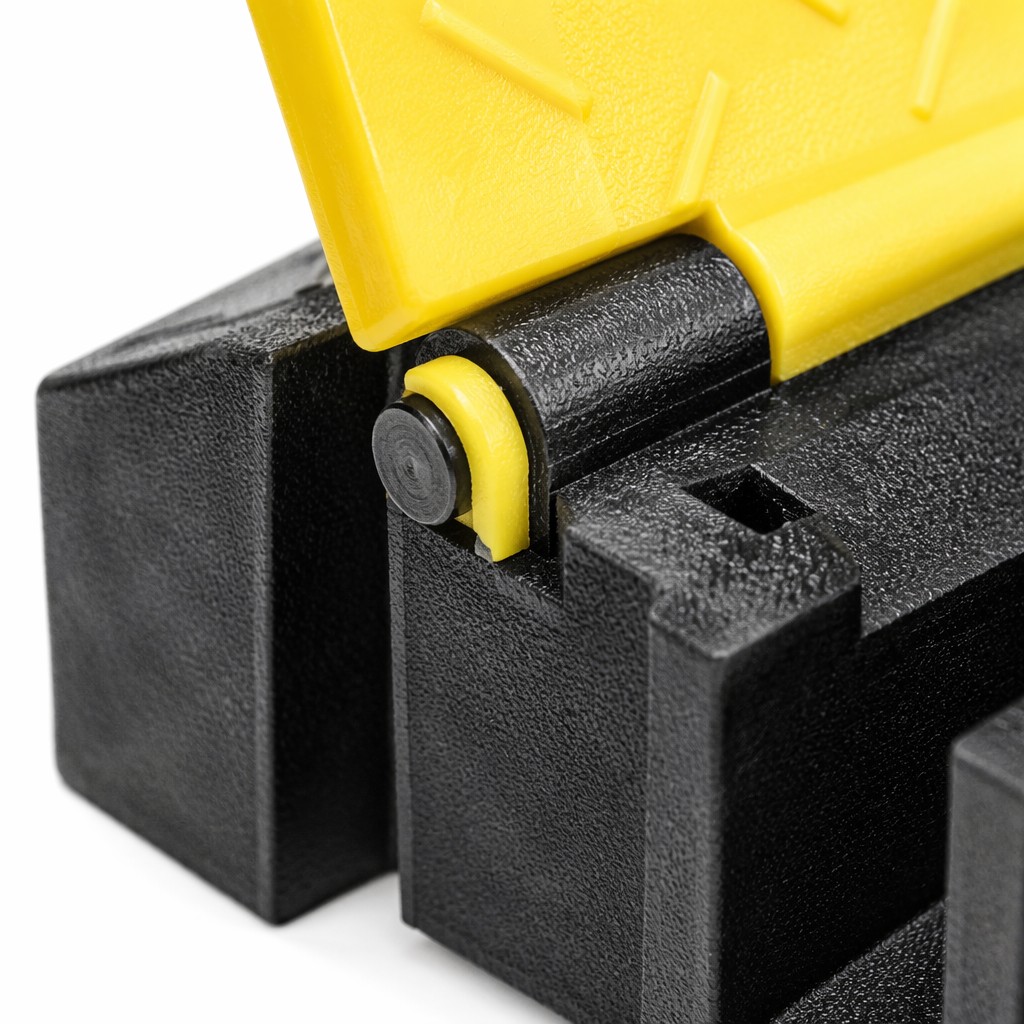

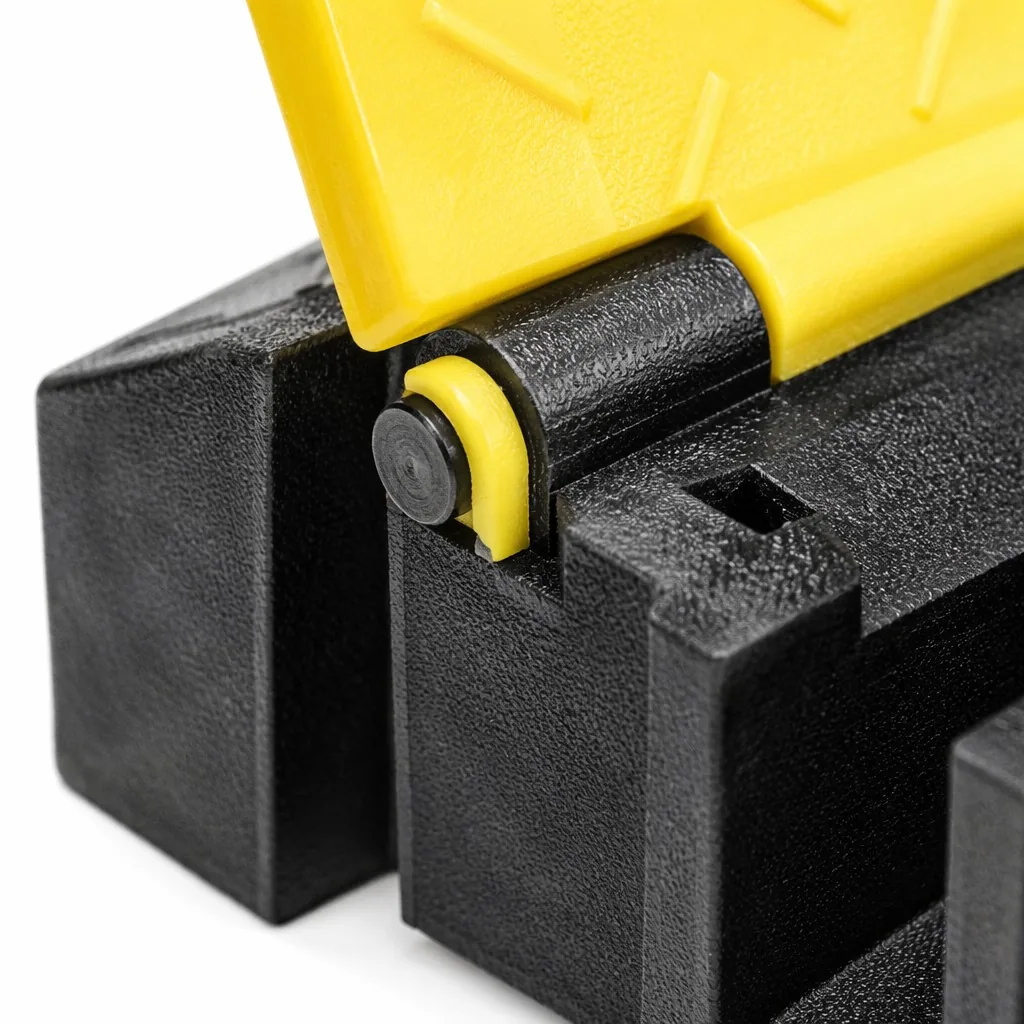

| Lid Mechanism | Piano-hinged, 5 individual lids over each channel |
| Interlocking | Dovetail male/female ends, unlimited series length |
| Load Rating | 25-ton static per unit · heavy vehicle rated In-house |
| Ramp Ends (optional) | Optional end-ramp modules; verify the measured installed route for accessibility |
| MOQ | 20 pcs Per order |
| Packing | Stackable pallet · 10 pcs per pallet Per order |
| Container Load | ~ 200 pcs / 20' GP Per order |
| Lead Time | 20 days for MOQ · 30 days for > 200 pcs Per order |
Are you a manufacturer or a trading company?
We are the manufacturer. Our plant in Tiantai County, Zhejiang covers 15,000 m² and runs its own rubber compounding, moulding and reflective-film application lines. You are welcome to arrange a factory audit or a live video walkthrough before ordering.
What is the minimum order quantity?
The listed MOQ for model CP-5CH is 20 pcs. Colour, logo, packaging and mixed-SKU requirements are confirmed in the written quotation before production.
How long does production take?
The listed production lead time for model CP-5CH is 20 Days at MOQ. Customization and the final schedule are confirmed in the written quotation.
Can I order a sample first?
Yes. We recommend it for any first order. Sample cost and courier freight are quoted case by case, and we credit the sample cost against your first bulk order.
What customisation do you offer?
Body colour to any Pantone reference, silk-screened or heat-transfer logos, altered dimensions on existing moulds, custom reflective-band layouts, and private-label packaging. Entirely new moulds are possible — send a drawing and we will quote tooling separately.
Which certifications do your products carry?
Documents are product- and market-specific. Tell us the SKU, destination and required standard so we can confirm the available specification sheet, material declaration or test report before you order.
What are your payment and shipping terms?
Usual terms are 30% deposit with the balance against the bill of lading copy; T/T and L/C are both accepted, and Alibaba Trade Assurance is available. We quote FOB by default and can arrange CIF or DDP on request. We ship to more than 50 countries.
| Legal entity | Tiantai Minjun Handicraft Co., Ltd. |
|---|---|
| Established | 2010 |
| Location | Tiantai County, Taizhou, Zhejiang Province, China |
| Plant area | 15,000 m² |
| Annual rubber throughput | 3,000 tonnes |
| Business type | Manufacturer — own moulding, compounding and finishing lines |
| Product range | 24 SKUs across 8 categories: traffic cones, delineators, dock bumpers, cable protectors, wheel stoppers, curb ramps, convex mirrors and site safety accessories |
| Buyer Documents | Model specification; available material or test reports confirmed before order |
| Export markets | 50+ countries — North America, Europe, Middle East, Australia, Southeast Asia |
| Minimum order | 20 pcs for model CP-5CH |
| Listed lead time | 20 Days at MOQ for model CP-5CH |
| OEM / ODM | Supported — colour matching, logo printing, dimension changes, private-label packaging |
| Payment terms | T/T (30% deposit) · L/C · Alibaba Trade Assurance |
| Shipping terms | FOB · CIF · DDP on request |
What You Can Customize
Every element below is quotable at MOQ. Send us a spec sheet or a photo — we quote back within 2 hours.
📏 Channel Count

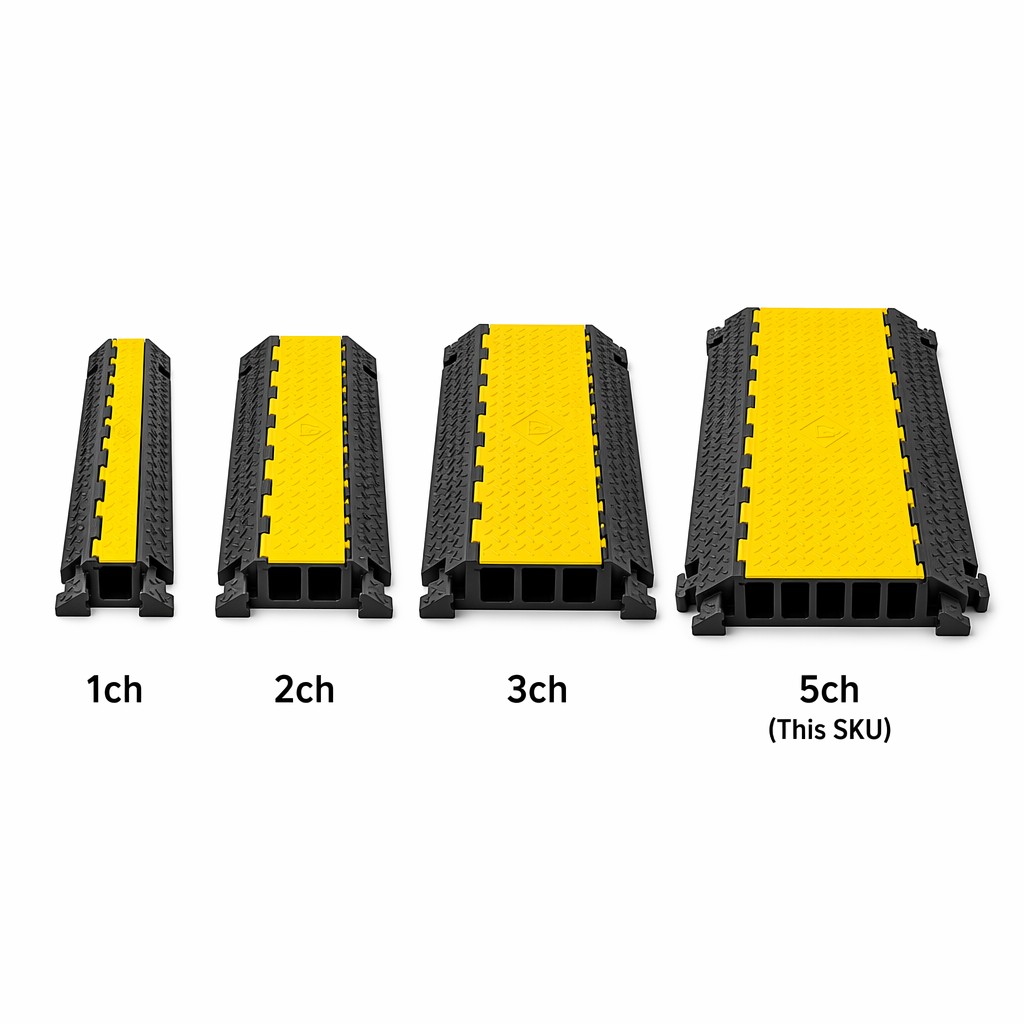

5 channels standard. Also 1, 2, 3-channel versions available.
🎨 Lid Color
Safety yellow standard. Orange, red, black, custom Pantone.
🚗 Load Rating
25-ton standard. Upgrade to 40-ton for crane-crossing service.
🕳️ Channel Size
Ø 42 mm standard. Custom Ø 50 mm at MOQ 100.
↔️ End Ramps
Optional end-ramp modules; request dimensions and verify the complete installed route for accessibility.
🖨️ Custom Print
Silk-screen safety warnings, event / company branding on lids.
